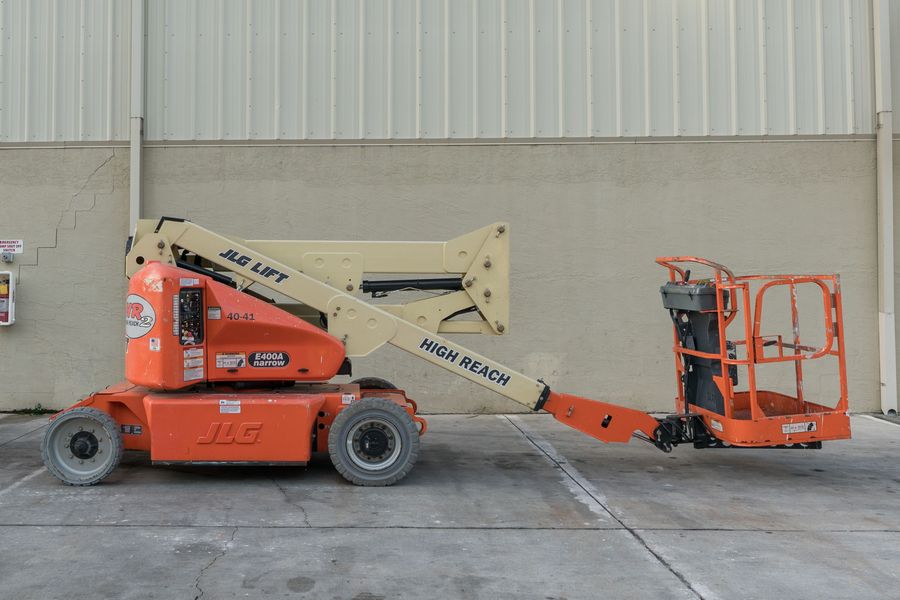

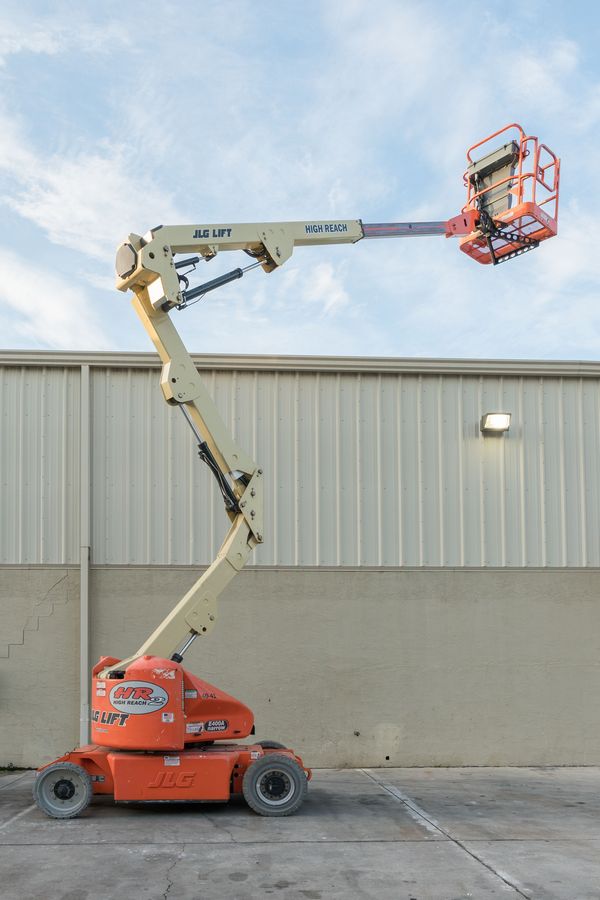

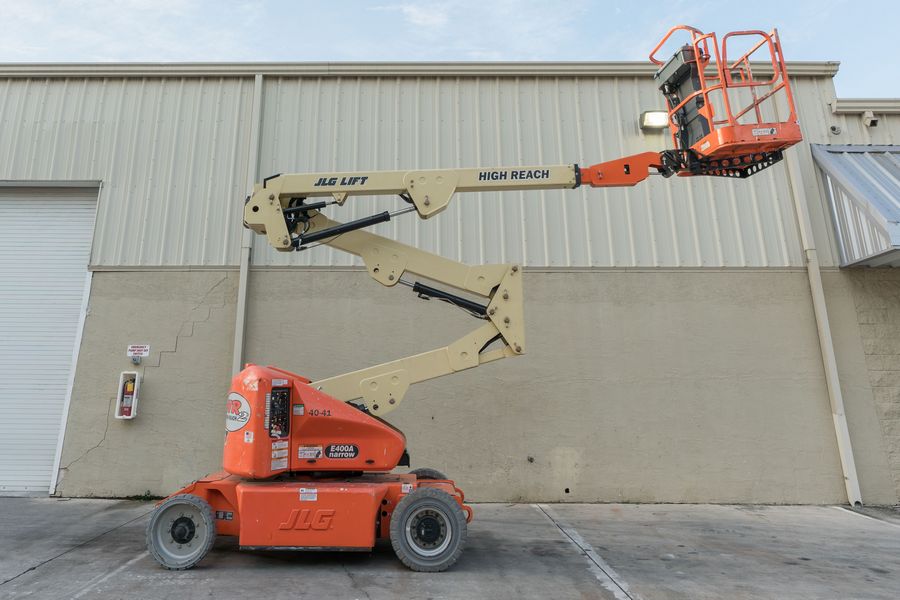

Up and over access with option jib. Allows you to move over uneven surfaces with Automatic Traction Control.
Rates
Daily
$450.00
Weekly
$1,060.00
Monthly
$1,950.00
Specifications
Specifications displayed may vary based on manufacturer year, model change and tire size. If you require certain specifications please contact an HR2 representative. Slab scissor lifts are designed to operate on slab surfaces like concrete or level blacktop. (will not work on grass, dirt, sand, or gravel) Electric boom lifts are designed to operate on slab surfaces like concrete or level blacktop. (will not work on grass, dirt, sand, or gravel)
Platform Height
40'
Horizontal Outreach
21' 2"
Swing
360° Non-Continuous
Platform Capacity
500 lbs
Platform Rotator
180° Hydraulic
Platform Size
30" x 48"
Overall Width
4' 11"
Tailswing
4"
Stowed Height
6' 5.75"
Stowed Length
18' 1"
Wheelbase
6' 7"
Ground Clearance
5"
Weight
13,100 lbs
Ground Bearing Pressue
95 psi
Drive Speed 2WD 4WD
3.0 mph
Gradeability 2WD 4WD
30%
Turning Radius 2WD 4WD (Inside)
2' 10"
Turning Radius 2WD/4WD (Outside)
10' 4"
Power Source
DC Power
Electrical Type
48V DC
Electrical Capacity (Batteries)
8 x 6V
Noise Level
70 dBa
Web SKU
40
Rates displayed here are estimated. Actual rates and actual delivery charges will be quoted when the order is confirmed based on the rental location and order confirmation. Other fees and taxes may apply.
Not sure about the equipment for your job? Call 800-860-1648 to schedule an appointment with a field sales representative to assess your jobsites needs.
We offer reasonably priced safety accessories to help you make your job safe and OSHA-compliant when using aerial equipment. Add items to your Parts Shopping cart, just a click away!
