74 hp engine doesn't require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations.

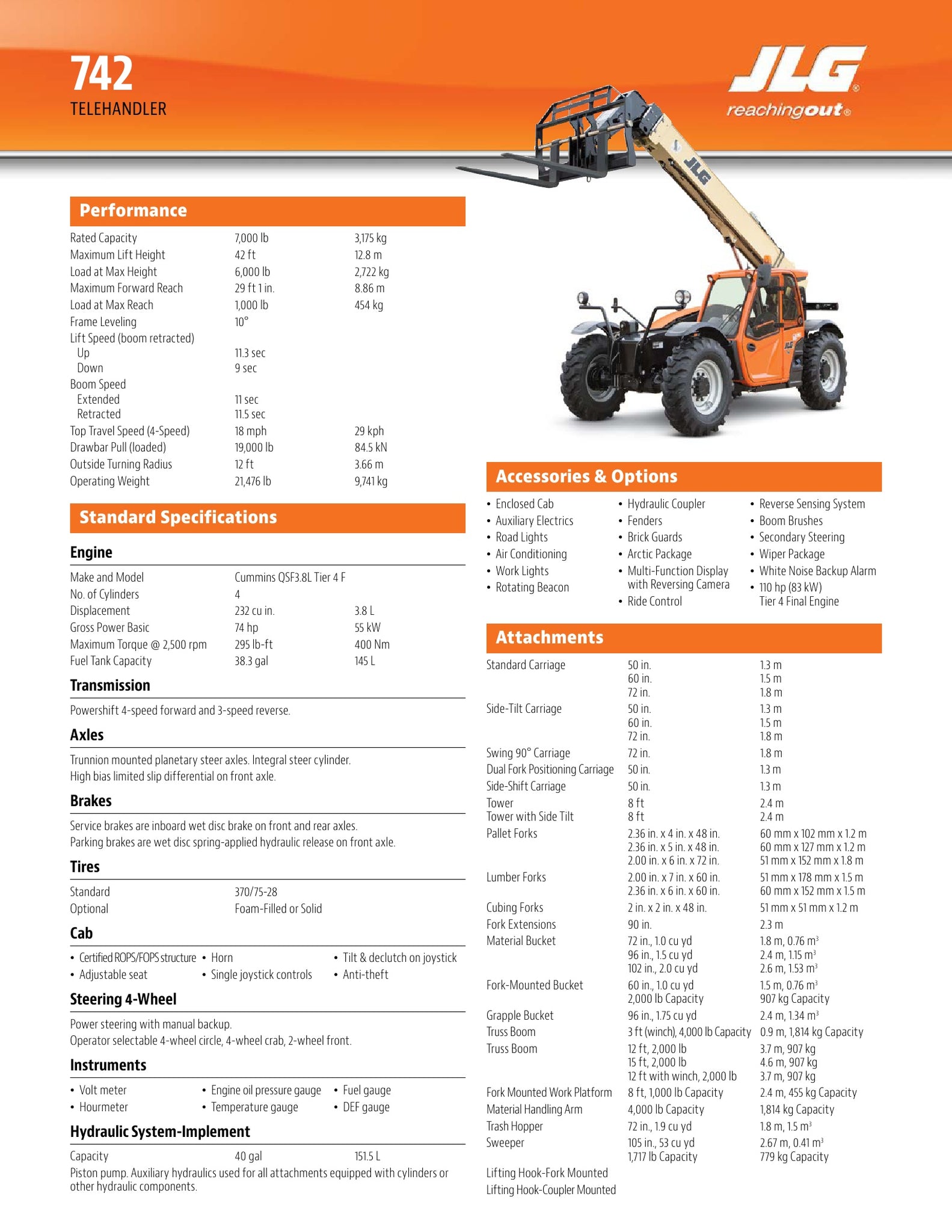

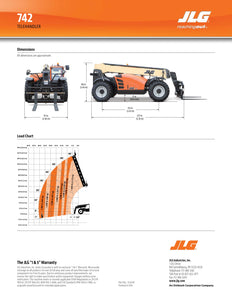

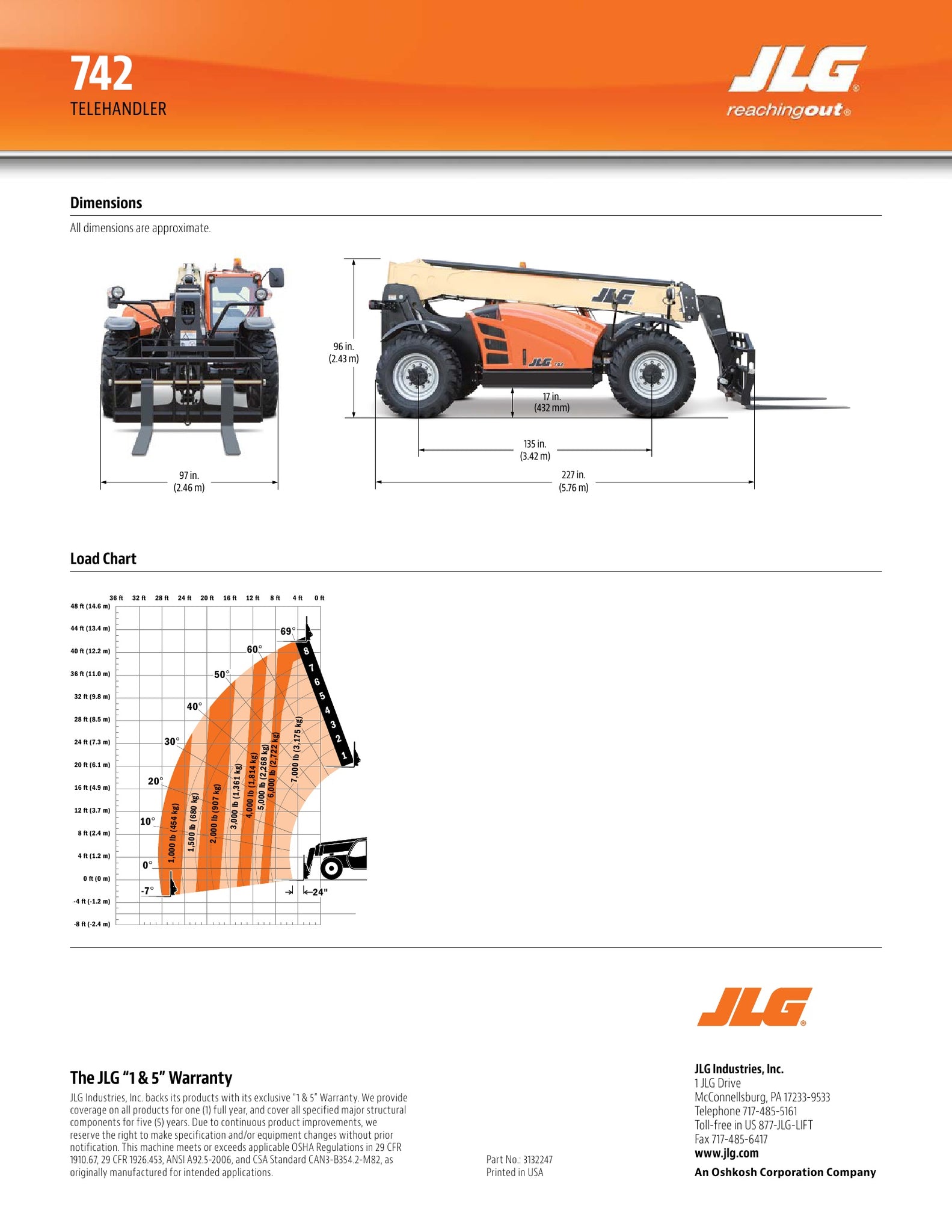

Specifications
Specifications displayed may vary based on manufacturer year, model change and tire size. If you require certain specifications please contact an HR2 representative.
Manufacturer
JLG
Lift Height
42'
Horizontal Outreach
29' 1"
Lift Capacity
7,000 lbs
Lift Lower Speed
9 sec
Extend Retract Speed
11/11.5 sec
Overall Width
97"
Stowed Height
96"
Stowed Length
227"
Wheelbase
135"
Ground Clearance
17"
Weight
21,476 lbs
Drive Speed 2WD 4WD
18 mph
Turning Radius 2WD/4WD (Outside)
12'
Power Source
Fuel
Fuel Type
Diesel
Fuel Capacity
38.3 gal
Brakes
Inboard wet disc brake on front and rear axels/ Wet disc spring applied Hydraulic release parking brake
